HCM1606X,HCM1612X

16mm  Electro-magnetic Automotive Buzzer

Buzzer Datasheet:
Pin termina  Type
Internal Driven Magnetic Buzzer (With oscillator circuit)
Dia 16 x14mm , 6V, 12V DC,Output 2.3K Hz 85dB at 10cm

Type

HCM1606X

HCM1612X

Rated Voltage        (V)

6

12

Operating  Voltage  (V)

4~8

8~15

Rated Current     (MA)

< 30

< 30

Sound Output at10cm(dB)

> 85

> 85

Resonant Frequency  (Hz)

2300  ±300

2300 ±300

Response Time     (ms)

< 50

< 50

Operating Temperature  (C)

-25~+70

-25~+70

Storage  Temperature  (C)

-30~+80

-30~+80

Weight                (g)

7

7

Value applying at rated voltage

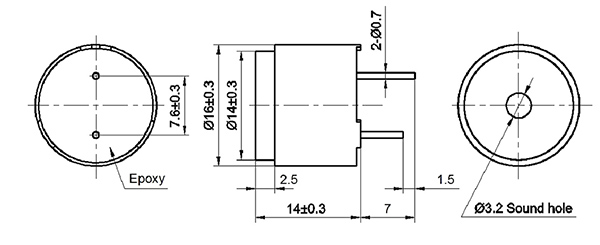

DIMENSIONS     Unit:mm     Tolerance:±0.5
