  • HCT8540B03 Passive SMD Magnetic Buzzer

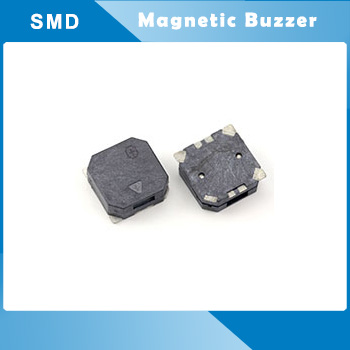

HCT8540B03 Passive SMD Magnetic Buzzer

HCT8540B03 Passive SMD Magnetic Buzzer

  • Product description: HCT8540B03 Passive SMD Magnetic Buzzer,Miniature Buzzer,Electro-Mgnetic Buzzer,AC Buzzer,SMD AC Buzzer ,I t mainly used in the Tyre pressure detector,small Electronic equipment .
  • INQUIRY

HCT8540B03 Passive SMD Magnetic Buzzer

Surface Mount Magnetic Transducer Buzzer
External Driven ( Without oscillator circuit)
8.5x 8.5x H4,Worked with 3V p-p 2.7KHz ,Output 85dB at 10cm

Type

HCT8540B03

Rated Voltage        (V)

3

Operating  Voltage  (V)

2~4

Rated Current     (MA)

< 100

Coil  Resistance   (ohm)

16 ± 3

Sound Output at10cm(dB)

> 85

Resonant Frequency  (Hz)

2700

Operating Temperature  (℃)

-20~+70

Storage  Temperature  (℃)

-30~+85

Dimension

8.5*8.5*H4

Weight                (g)

0.8


Value applying rated voltage (Resonant frequency,1/2duty,square wave)

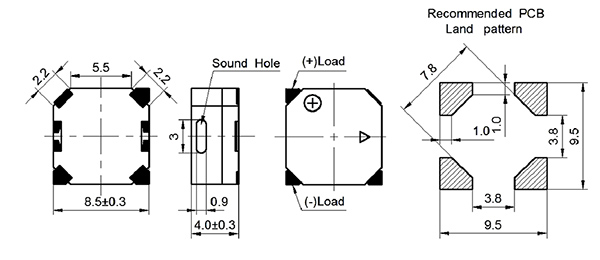

Dimensions (Unit:mm)
