  • HE-208P  400Hz Electromechanical Buzzer

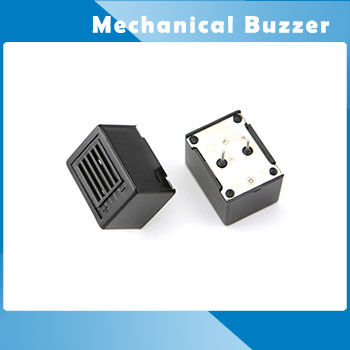

HE-208P  400Hz Electromechanical Buzzer

HE-208P 400Hz Electromechanical Buzzer

  • Product description: HE-208P 400Hz Electromechanical Buzzer , Low Frequency Audio Indicator ,Internal Driven, Pin termina Type ,Worked with 1.5V,3V,6V 12V DC,Output 400 Hz 85dB at 10cm
  • INQUIRY

HE-208P 400Hz Electromechanical Buzzer

Low Frequency Audio Indicator

Buzzer Datasheet:
Pin termina  Type
Internal Driven Mechanical Buzzer (With oscillator circuit)
22x 16x 16mm ,Worked with 1.5V,3V,6V,12V DC,Output 400 Hz 85dB at 10cm

Type

HE208P-1

HE208P-3

HE208P-6

HE208P-12

Rated Voltage        (V)

1.5

3

6

12

Operating  Voltage  (V)

1.2~3

2~4

4~8

9~15

Rated Current     (MA)

< 30

Sound Output at10cm(dB)

> 85

Resonant Frequency  (Hz)

400 ±100

Tone Nature

Continuous

Operating Temperature  (C)

25~+70

Storage  Temperature  (C)

-30~+80

Weight                (g)

8.5

Value applying at rated voltage

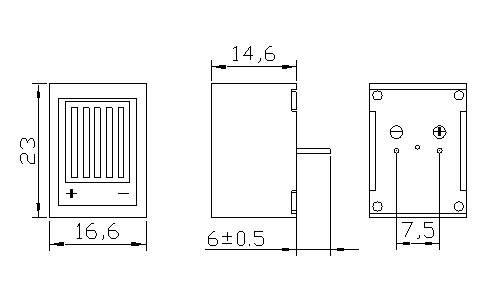

DIMENSIONS     Unit:mm     Tolerance:±0.5
