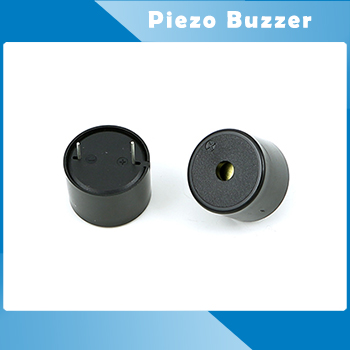

 HP2316AX Piezo Electric Buzzer

HP2316AX Piezo Electric Buzzer

  • Product description: HP2316AX Piezo Electric Buzzer , 12VPiezo Buzzer , low power consumption, high sound pressure .Main application is Air conditioning, refrigerator, alarm and other electronic equipment.
  • INQUIRY

Piezo Electric Buzzer , Piezo Buzzer HP2316X

Buzzer Datasheet:
Pin termina  Type
Internal Driven Piezo Buzzer (With oscillator circuit)
Dia 23x16mm Worked with 12V DC. Output 3.5K Hz 85dB at 10cm

Type

UNIT

HP2316AX

HP2316BX

*Min. Sound Output at10cm

dB

85

85

Rated Voltage

VDC

12

12

Operating Voltage

VDC

3~20

3~20

Resonant Frequency

Hz

2900±500

3400±500

*Max. Current Consumption

mA

15

15

Tone Nature


Continuous

Operating Temperature

°C

-20~+70

Storage Temperature

°C

-30~+80

Weight

g

6

Value applying at rated voltage
DIMENSIONS     Unit:mm     Tolerance:±0.5
