  • HCT1370X Active SMD Magnetic Buzzer
HCT1370X Active SMD Magnetic Buzzer

HCT1370X Active SMD Magnetic Buzzer

  • Product description: HCT1370X Active SMD Magnetic Buzzer ,5V,12V DC SMD Buzzer , Direct circuit driven SMD buzzer, SMT Magnetic Buzzer . used for small Electronic equipment .
  • INQUIRY

HCT1370X Active SMD Magnetic Buzzer

Surface Mount Magnetic Buzzer
Internal Driven ( With oscillator circuit)
12.8x12.8xH7.1,Worked with 1.5~12V DC ,Output2.4KHz 85dB at 10cm

Type

HCT1370X01

HCT1370X05

HCT1370X12

Rated Voltage        (V)

1.5

5

12

Operating  Voltage  (V)

1.2~3

3~7

8~15

Rated Current     (MA)

< 30

< 30

< 30

Sound Output at10cm(dB)

> 80

> 85

> 85

Resonant Frequency  (Hz)

2400 ± 400

2300  ±300

2300 ±300

Response Time     (ms)

< 50

< 50

< 50

Operating Temperature  (C)

-10~+50

-25~+70

-25~+70

Storage  Temperature  (C)

-15~+60

-30~+80

-30~+80

Weight                (g)

2

Dimension

12.8*12.8*H7.1


Value applying rated voltage (DC)

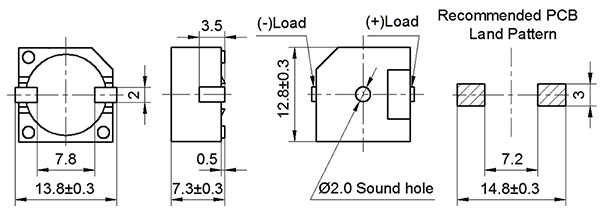

Dimensions (Unit:mm)
