  •  HP1032W Passive  Piezo Buzzer
 HP1032W Passive  Piezo Buzzer

HP1032W Passive Piezo Buzzer

  • Product description: HP1032W Passive leadwire Piezo Buzzer ,External Driven Piezo Transducer Buzzer,small size, low current,wire buzzer. the mainly application is Security , Beauty products, medical products
  • INQUIRY

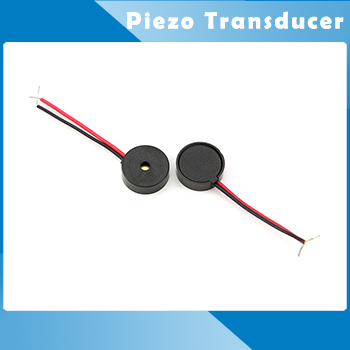

HP1032W Passive leadwire Piezo Buzzer

Audio Transducer Buzzer Datasheet:
Lead wire type
External Driven Piezo Transducer Buzzer (Without oscillator circuit)
Dia 10x3.2mm Worked with 3V p-p 3.5K Hz,Output 75dB at 10cm


Type

UNIT

HP1032W

*Min. Sound Output at10cm

dB

75

Rated Voltage

Vp-p

3

Operating Voltage

Vp-p

1~30

Resonant Frequency

Hz

3500±500

*Max. Current Consumption

mA

2

Capacitance at 1,000HZ

pF

12000±30%

Operating Temperature

°C

-20~+70

Storage Temperature

°C

-30~+80

Housing Material


ABS

RoHS


YES

Weight

g

1.0


* Value applying at rated voltage

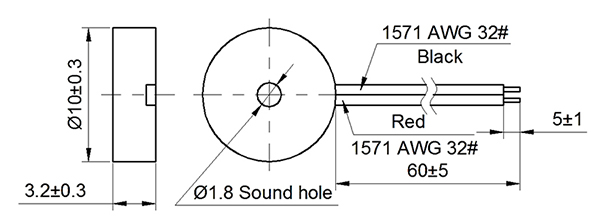

DIMENSIONS     Unit:mm     Tolerance:±0.5
