  •  HP1330W Wire Lead Piezo Buzzer

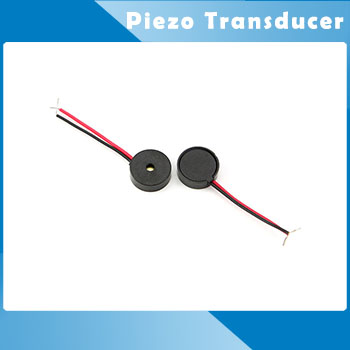

 HP1330W Wire Lead Piezo Buzzer

HP1330W Wire Lead Piezo Buzzer

  • Product description: HP1330W Wire Lead Piezo Transducer Buzzer, small size, low current,wire buzzer. the mainly application is Security,Beauty products, medical products
  • INQUIRY

HP1330W Wire Lead Piezo Transducer Buzzer

Transducer Buzzer Datasheet:
Lead wire type
External Driven Piezo Transducer Buzzer (Without oscillator circuit)
Dia 13x3mm ,Worked with 5V p-p 3.5K Hz,Output 70dB at 10cm

Type

UNIT

HP1330W

*Min. Sound Output at10cm

dB

70

Rated Voltage

Vp-p

5

Operating Voltage

Vp-p

1~20

Resonant Frequency

Hz

3500±500

*Max. Current Consumption

mA

2

Capacitance at 1,000HZ

pF

12000±30%

Operating Temperature

°C

-20~+60

Storage Temperature

°C

-30~+70

Weight

g

1


* Value applying at rated voltage



DIMENSIONS     Unit:mm     Tolerance:±0.5
