 HP1470A  5V Passive Pin Piezo Buzzer

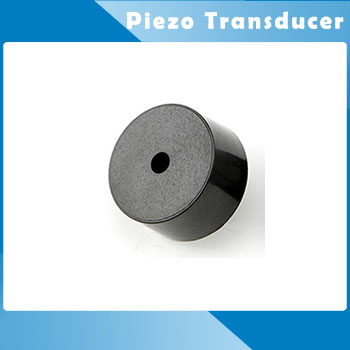

HP1470A 5V Passive Pin Piezo Buzzer

  • Product description: HP1470A 5V Passive Pin Piezo Buzzer,security buzzer,alarm buzzer. It's small size, low current,high SPL .mainly use for Fan controller,air condition .
  • INQUIRY

 HP1470A  5V Passive Pin Piezo Buzzer

Transducer Buzzer Datasheet:
Pin termina  Type
External Driven Piezo Transducer Buzzer (Without oscillator circuit)
Dia 14 x7mm, Worked with 5V p-p 4KHz ,Output 80dB at 10cm


Type

UNIT

HP147005A

HP147012A

*Min. Sound Output at10cm

dB

80

85

Rated Voltage

Vp-p

5

12

Operating Voltage

Vp-p

1~30

1~30

Resonant Frequency

Hz

4000±500

4000±500

*Max. Current Consumption

mA

3

3

Operating Temperature

°C

-20~+70

Storage Temperature

°C

-30~+80

Weight

g

2


Value applying at rated voltage

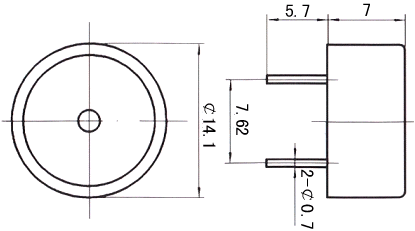

DIMENSIONS     Unit:mm     Tolerance:±0.5
