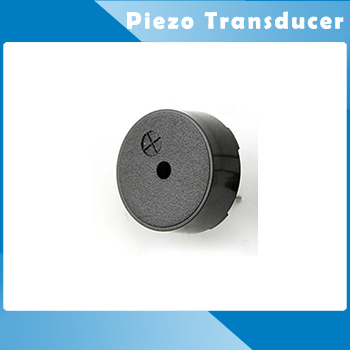

 HP1450A Passive Pin Piezo Transducer Buzzer

HP1450A Passive Pin Piezo Transducer Buzzer

  • Product description: HP1450A Passive Pin Piezo Transducer Buzzer , security buzzer,alarm buzze,small size, low current,high SPL . pin type buzzer. mainly used Security buzzer, Supermarket alarm. .
  • INQUIRY

HP1450A Passive Pin Piezo Transducer Buzzer

Transducer Buzzer Datasheet:
Pin termina  Type
External Driven Piezo Transducer Buzzer (Without oscillator circuit)
Dia 14 x5mm, Worked with 5V p-p 4KHz ,Output 80dB at 10cm

Type

UNIT

HP1450A

*Min. Sound Output at10cm

dB

80

Rated Voltage

Vp-p

5

Operating Voltage

Vp-p

1~30

Resonant Frequency

Hz

4000±500

*Max. Current Consumption

mA

2

Capacitance at 1,000HZ

pF

15000±30%

Operating Temperature

°C

-20~+70

Storage Temperature

°C

-30~+80

Housing Material


PPO

RoHS


YES

Weight

g

1.0


* Value applying at rated voltage

DIMENSIONS     Unit:mm     Tolerance:±0.5
