 HP1790A External Driven Piezo  Buzzer

HP1790A External Driven Piezo Buzzer

  • Product description: HP1790A External Driven Piezo , piezo ceramic buzzer, 2KHZ buzzer, 3V piezo buzzer. application used for air condition,equipment .
  • INQUIRY

 HP1790A External Driven Piezo  Buzzer

Transducer Buzzer Datasheet:
Pin termina  Type
External Driven Piezo Transducer Buzzer (Without oscillator circuit)
Dia 17 x9mm, Worked with 3V p-p 2KHz ,Output 70dB at 10cm

Type

UNIT

HP1790A

*Min. Sound Output at10cm

dB

70

Rated Voltage

Vp-p

3

Operating Voltage

Vp-p

1~25

Resonant Frequency

KHz

2.0±0.5

*Max. Current Consumption

mA

2

Capacitance at 1,000HZ

pF

25000±30%

Operating Temperature

°C

-20~+70

Storage Temperature

°C

-30~+80

Housing Material


PPO

RoHS


YES

Weight

g

1.0


* Value applying at rated voltage

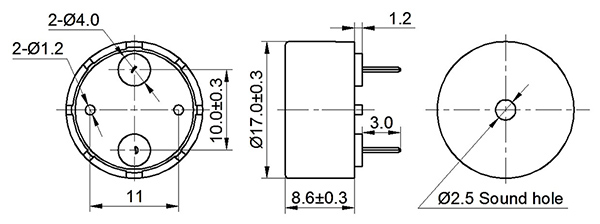

DIMENSIONS     Unit:mm     Tolerance:±0.5
