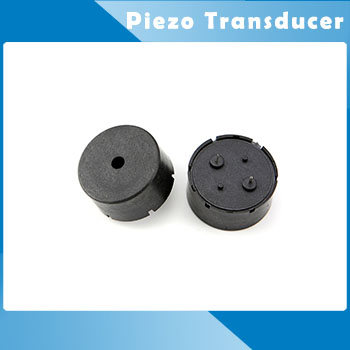

 HP2280A Passive Pin Piezo Buzzer

HP2280A Passive Pin Piezo Buzzer

  • Product description: HP2280A Passive Pin Piezo Buzzer, piezo ceramic buzzer, 4KHZ buzzer, 12V piezo buzzer. ,small size,low current,Pin type buzzer . Application used for equipment,Home appliance .
  • INQUIRY

HP2280A Passive Pin Piezo Buzzer

Transducer Buzzer Datasheet:
Pin termina  Type
External Driven Piezo Transducer Buzzer (Without oscillator circuit)
Dia 22x8mm, Worked with 12V p-p 4KHz ,Output 88dB at 10cm

Type

UNIT

HP2280A

*Min. Sound Output at10cm

dB

88

Rated Voltage

Vp-p

12

Max. Voltage

Vp-p

30

Resonant Frequency

Hz

4000±500

*Max. Current Consumption

mA

3

Capacitance at 1,000HZ

pF

19000±30%

Case Material


MPPO

Operating Temperature

°C

-20~+80

Storage Temperature

°C

-30~+105

Weight

g

2.5

Value applying at rated voltage

DIMENSIONS     Unit:mm     Tolerance:±0.5
