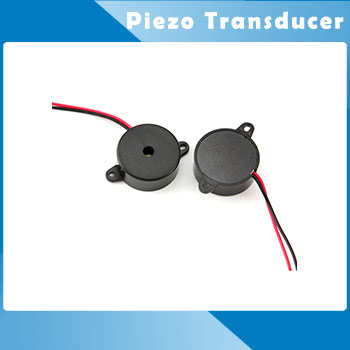

 HP2450W Passive Wire Lead Piezo Buzzer

HP2450W Passive Wire Lead Piezo Buzzer

  • Product description: HP2450W Passive Wire Lead Piezo Buzzer,industrial buzzer , application for industrial buzzer.
  • INQUIRY

HP2450W Passive Wire Lead Piezo Buzzer

Transducer Buzzer Datasheet:
Lead wire type
External Driven Piezo Transducer Buzzer (Without oscillator circuit)
Dia 24 x5mm, Worked with 10V p-p 4KHz ,Output 85dB at 10cm


Type

UNIT

HP2450W

*Min. Sound Output at10cm

dB

85

Rated Voltage

Vp-p

10

Operating Voltage

Vp-p

1~30

Resonant Frequency

Hz

4000±500

*Max. Current Consumption

mA

2

Max Capacitance at 1,000HZ

pF

15000±30%

Operating Temperature

°C

-20~+60

Storage Temperature

°C

-30~+70

Weight

g

2.5

Value applying at rated voltage

DIMENSIONS     Unit:mm     Tolerance:±0.5
