  • HP4216AXW12 Siren Buzzer

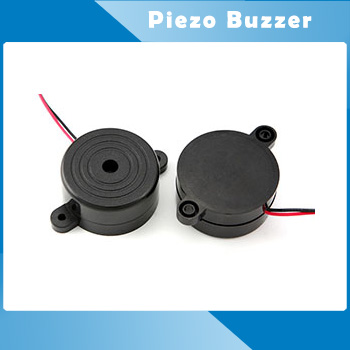

HP4216AXW12 Siren Buzzer

HP4216AXW12 Siren Buzzer

  • Product description: HP4216AXW12 Reserve siren buzzer apply for industrial machine,reversing radar.Automotive alarm .Usually the Rated voltage is 12V 24V .
  • INQUIRY

HP4216AXW12 Siren Buzzer ,Automotive Alarm

Buzzer Datasheet:
Lead wire type
Internal Driven Piezo Buzzer (With oscillator circuit)
Dia 42 x16mm Worked with 12V DC , Output2.9~ 3.1K Hz 100dB at 10cm

Type

UNIT

HP4216AXW12

HP4216AXW24

*Min. Sound Output at10cm

dB

100

105

Rated Voltage

VDC

12

24

Operating Voltage

VDC

3~20

18~30

Resonant Frequency

Hz

2900±500

3100±500

*Max. Current Consumption

mA

15

20

Tone Nature


Continuous

Continuous

Operating Temperature

°C

-20~+70

Storage Temperature

°C

-30~+80

Weight

g

13.5

Value applying at rated voltage

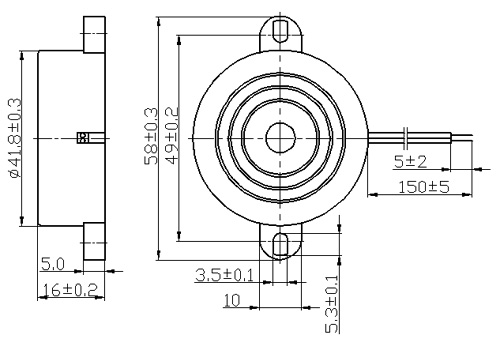

DIMENSIONS     Unit:mm     Tolerance:±0.5
