  • HP4216BXW12  DC Piezo Alarm  Buzzer
HP4216BXW12  DC Piezo Alarm  Buzzer

HP4216BXW12 DC Piezo Alarm Buzzer

  • Product description: HP4216BXW12 DC Piezo Alarm Buzzer is apply for Network communication, motorcycle GPS locator.Automotive alarm .Usually the Rated voltage is 12V .The feature is alarm sound and high SPL.
  • INQUIRY

HP4216BXW12  DC Piezo Alarm  Buzzer

Buzzer Datasheet:
Lead wire type
Internal Driven Piezo Buzzer (With oscillator circuit)
Dia 42x16mm Worked with 12V DC , Output2.9~ 3.1K Hz 100dB at 10cm

Type

UNIT

HP4216BXW09

HP4216BXW12

*Min. Sound Output at10cm

dB

100

85/30cm

Rated Voltage

VDC

9

12

Operating Voltage

VDC

6~12

8~15

Resonant Frequency

Hz

2900±500

3100±500

*Max. Current Consumption

mA

150

150

Tone Nature


Siren

Siren

Operating Temperature

°C

-20~+70

Storage Temperature

°C

-30~+80

Weight

g

18

Value applying at rated voltage

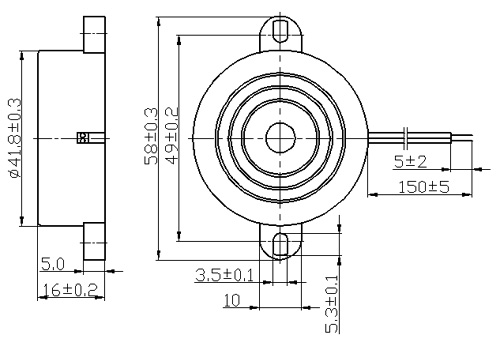

DIMENSIONS     Unit:mm     Tolerance:±0.5
