  • HPT1109F SMD Piezo  Buzzer ,POS Machine Buzzer
HPT1109F SMD Piezo  Buzzer ,POS Machine Buzzer

HPT1109F SMD Piezo Buzzer ,POS Machine Buzzer

  • Product description: HPT1109F SMD Piezo Buzzer ,POS Machine Buzzer,Tiny piezo buzzer, Miniature buzzer,Mini piezo buzzer,Mainly used in POS machine , blood glucose meter,sphygmomanometer,parking recorder .
  • INQUIRY

HPT1109F SMD Piezo  Buzzer

POS Machine Buzzer

Surface Mount Piezo Transducer Buzzer
External Driven ( Without oscillator circuit)
11x 9x H1.8,Worked with 5V p-p 4100Hz ,Output 70dB at 10cm


Type

UNIT

HPT1109F

*Min. Sound Output at10cm

dB

70

Rated Voltage

Vp-p

5

Operating Voltage

Vp-p

2~10

Resonant Frequency

Hz

4100±500

.Rated Consumption

mA

5

Capacitance at 120 HZ

pF

15000±30%

Operating Temperature

°C

-20~+105

Storage Temperature

°C

-30~+110

Dimension

11*19*H1.8

Weight

g

0.5


Value applying rated voltage (Resonant frequency,1/2duty,square wave)

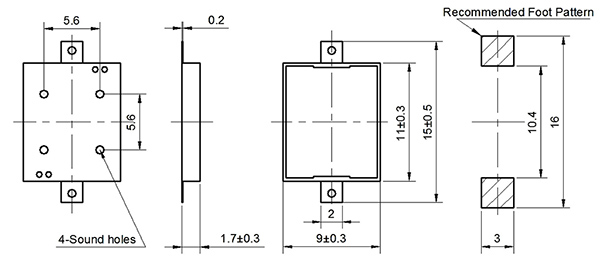

Dimensions (Unit:mm)
