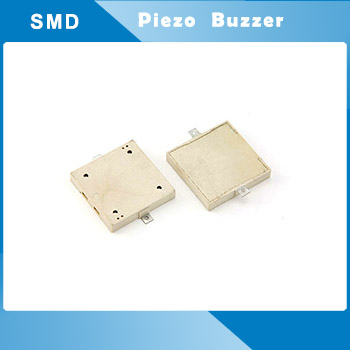

  • HPT16025F SMT  Piezo Transducer Buzzer ,Waterproof SMT Buzzer
HPT16025F SMT  Piezo Transducer Buzzer ,Waterproof SMT Buzzer

HPT16025F SMT Piezo Transducer Buzzer ,Waterproof SMT Buzzer

  • Product description: HPT16025F SMT Piezo Transducer Buzzer ,Waterproof SMT Buzzer,Tiny piezo buzzer, SMT piezo buzzer ,small in size,sound clarity, low power consumption, waterproof.Mainly used in telephone, air conditi
  • INQUIRY

HPT16025F SMT  Piezo Transducer Buzzer

Waterproof SMT Buzzer

Surface Mount Piezo Transducer Buzzer
External Driven ( Without oscillator circuit)
16x 16x H2.5 Worked with 5V p-p 4KHz ,Output 75dB at 10cm

Type

UNIT

HPT16025F

*Min. Sound Output at10cm

dB

75

Rated Voltage

Vp-p

5

Operating Voltage

Vp-p

1~25

Resonant Frequency

Hz

4000

.Rated Consumption

mA

5

Capacitance at 120 HZ

pF

15000±30%

Operating Temperature

°C

-20~+70

Storage Temperature

°C

-30~+80

Dimension

16*16*H2.5

Weight

g

0.5

Value applying rated voltage (Resonant frequency,1/2duty,square wave)

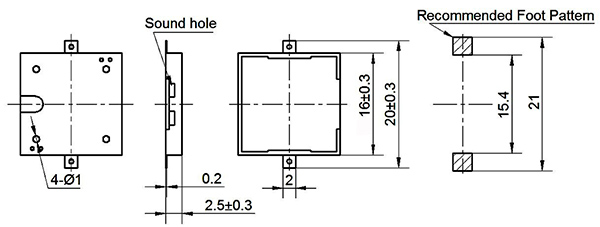

Dimensions (Unit:mm)
