Home > Surface Mount Piezo Buzzer
|
Type |
UNIT |
HPT12030B |
|
*Min. Sound Output at10cm |
dB |
75 |
|
Rated Voltage |
Vp-p |
5 |
|
Operating Voltage |
Vp-p |
1~25 |
|
Resonant Frequency |
Hz |
4000±500 |
|
.Rated Consumption |
mA |
5 |
|
Capacitance at 120 HZ |
pF |
15000±30% |
|
Operating Temperature |
°C |
-20～+105 |
|
Storage Temperature |
°C |
-30～+110 |
|
Dimension |
12*12*H3 |
|
|
Weight |
g |
0.3 |
Value applying rated voltage (Resonant frequency,1/2duty,square wave)

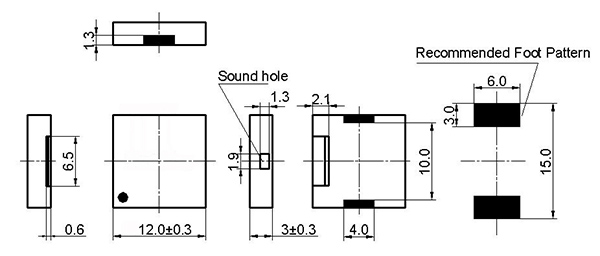

Dimensions (Unit:mm)

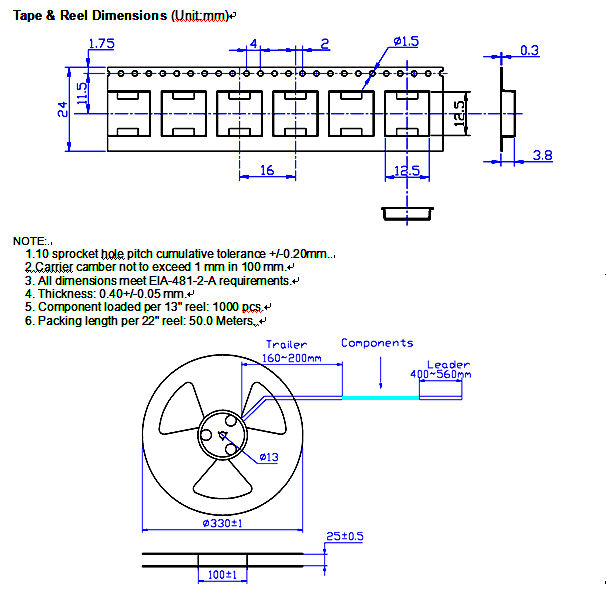

Reel Packing :
